HMC641LC4

GaAs MMIC SP4T NON-REFLECTIVE SWITCH

HMC641LC4 Features

* Broadband Performance: DC - 20 GHz High Isolation: 42 dB @ 12 GHz Low Insertion Loss: 2.1 dB @ 12 GHz Integrated 2:4 TTL Decoder 24 Lead 4x4mm SMT Package: 16mm² General Description The HMC641LC4 is a broadband non-reflective GaAs pHEMT SP4T switch in a compact 4x4 mm ceramic package. Covering DC to

HMC641LC4 General Description

The HMC641LC4 is a broadband non-reflective GaAs pHEMT SP4T switch in a compact 4x4 mm ceramic package. Covering DC to 20 GHz, this switch offers high isolation, low insertion loss and on-chip termination of isolated ports. This switch also includes an on board binary decoder circuit which reduces t.

HMC641LC4 Datasheet (306.87 KB)

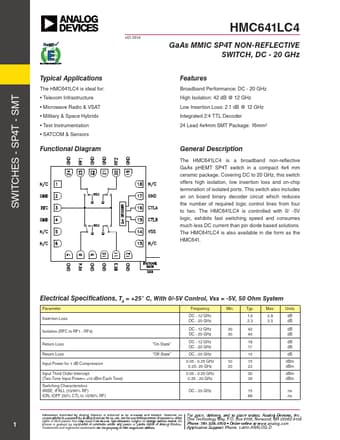

Preview of HMC641LC4 PDF

Datasheet Details

Part number:

HMC641LC4

Manufacturer:

Analog Devices ↗

File Size:

306.87 KB

Description:

Gaas mmic sp4t non-reflective switch.
SWITCHES - SP4T - SMT v01.0514 Typical Applications The HMC641LC4 is ideal for:

* Telecom Infrastructure

* Microwave Radio & VSAT
