HMC641LP4E Datasheet, Switch, Analog Devices

HMC641LP4E Features

  • Switch Broadband Performance: DC - 20 GHz High Isolation: 45 dB @ 10 GHz Low Insertion Loss: 2.3 dB @ 10 GHz Integrated 2:4 TTL Decoder 24 Lead 4x4 mm SMT Package: 16 mm² General Description T

PDF File Details

Part number:

HMC641LP4E

Manufacturer:

Analog Devices ↗

File Size:

371.81kb

Download:

📄 Datasheet

Description:

Gaas mmic sp4t non-reflective switch. The HMC641LP4E is a broadband non-reflective GaAs pHEMT SP4T switch in a compact 4x4 mm plastic package. Covering DC to 20 GHz, this

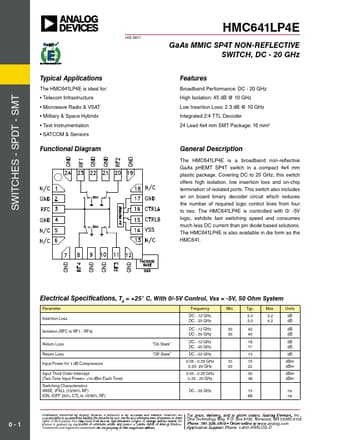

Datasheet Preview: HMC641LP4E 📥 Download PDF (371.81kb)
Page 2 of HMC641LP4E Page 3 of HMC641LP4E

HMC641LP4E Application

  • Applications The HMC641LP4E is ideal for:
  • Telecom Infrastructure
  • Microwave Radio & VSAT
  • Military & Space Hybrids

TAGS

HMC641LP4E
GaAs
MMIC
SP4T
Non-Reflective
Switch
Analog Devices
