HMC641 Datasheet, Switch, Analog Devices

HMC641 Features

  • Switch Broadband Performance: DC - 18 GHz High Isolation: 42 dB @ 12 GHz Low Insertion Loss: 2.1 dB @ 12 GHz Integrated 2:4 TTL Decoder Small Size: 1.92 x 1.60 x 0.10 mm General Description Th

PDF File Details

Part number:

HMC641

Manufacturer:

Analog Devices ↗

File Size:

624.91kb

Download:

📄 Datasheet

Description:

Gaas mmic sp4t non-reflective switch. The HMC641 is a broadband non-reflective GaAs PHEMT SP4T switch chip. Covering DC to 18 GHz, this switch offers high isolation and lo

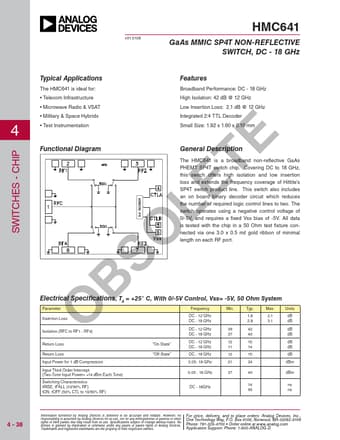

Datasheet Preview: HMC641 📥 Download PDF (624.91kb)
Page 2 of HMC641 Page 3 of HMC641

HMC641 Application

  • Applications The HMC641 is ideal for:
  • Telecom Infrastructure
  • Microwave Radio & VSAT
  • Military & Space Hybrids 4
