HMC641A

0.1GHz to 18GHz GaAs SP4T Switch

Analog Devices

HMC641A Features

* Broadband frequency range: 0.1 GHz to 18 GHz Nonreflective 50 Ω design Low insertion loss: 2.1 dB to 12 GHz High isolation: 42 dB to 12 GHz High input linearity P1dB: 25 dBm typical at VSS =

* 5 V IP3: 41 dBm typical High power handling at VSS =

* 5 V 24 dBm through path 23 dBm termina

HMC641A General Description

The HMC641A is a nonreflective, single-pole, four-throw (SP4T) switch, manufactured using a gallium arsenide (GaAs) process. This switch typically provides low insertion loss of 2.1 dB and high isolation of 42 dB in broadband frequency range from 0.1 GHz to 18 GHz. The HMC641A includes an on-chip, b.

HMC641A Datasheet (289.34 KB)

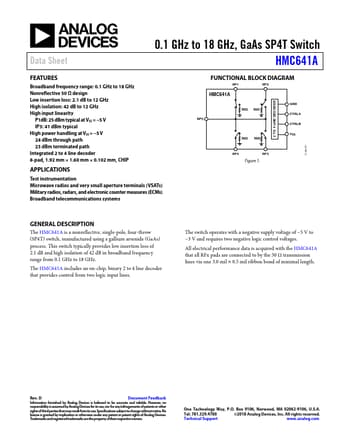

HMC641A Datasheet Preview — Preview of HMC641A PDF

Datasheet Details

Part number:

HMC641A

Manufacturer:

Analog Devices ↗

File Size:

289.34 KB

Description:

0.1ghz to 18ghz gaas sp4t switch.
