HMC641ALP4E

GaAs Nonreflective SP4T Switch

HMC641ALP4E Features

* Broadband frequency range: 0.1 GHz to 20 GHz Nonreflective 50 Ω design Low insertion loss: 3.0 dB at 20 GHz High isolation: 40 dB at 20 GHz High input linearity at 250 MHz to 20 GHz P1dB: 24 dBm typical IP3: 41 dBm typical High power handling 26.5 dBm through path 23 dBm terminated path Integrated 2

HMC641ALP4E General Description

The HMC641ALP4E is a general-purpose, nonreflective, singlepole, four-throw (SP4T) switch manufactured using a gallium arsenide (GaAs) process. This switch offers high isolation, low insertion loss, and on-chip termination of the isolated ports. The switch operates with a negative supply voltage ran.

HMC641ALP4E Datasheet (511.78 KB)

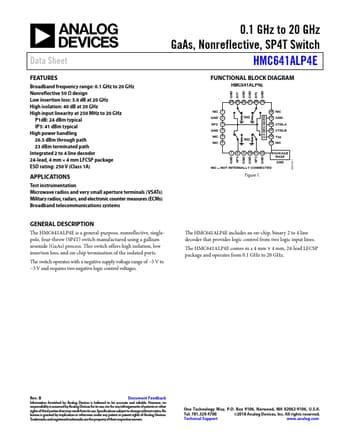

Preview of HMC641ALP4E PDF

Datasheet Details

Part number:

HMC641ALP4E

Manufacturer:

Analog Devices ↗

File Size:

511.78 KB

Description:

Gaas nonreflective sp4t switch.
