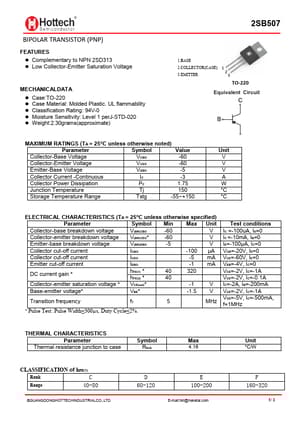

Part number:
2SB507
Manufacturer:
Hottech
File Size:
467.13 KB
Description:
Pnp transistor.
* Complementary to NPN 2SD313
* Low Collector-Emitter Saturation Voltage MECHANICALDATA
* Case:TO-220
* Case Material: Molded Plastic. UL flammability
* Classification Rating: 94V-0
* Moisture Sensitivity: Level 1 perJ-STD-020
* Weight:2.30grams(approximate) 2SB507 1.BAS
2SB507
Hottech
467.13 KB
Pnp transistor.
