HGP029N06SL - 60V N-Ch Power MOSFET

📥 Download Datasheet

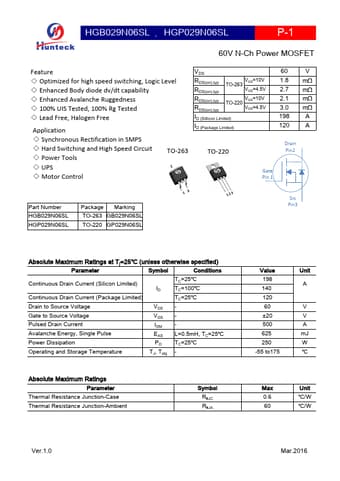

Datasheet preview – HGP029N06SL

Datasheet Details

Part number HGP029N06SL
Manufacturer Hunteck
File Size 754.40 KB
Description 60V N-Ch Power MOSFET
Datasheet download datasheet HGP029N06SL Datasheet
Additional preview pages of the HGP029N06SL datasheet.

📁 Similar Datasheet

  • HGP022N04A-G - Silicon N-Channel Power MOSFET (CR Micro)
  • HGP022N04B-G - Silicon N-Channel Power MOSFET (CR Micro)
  • HGP026N03A - Silicon N-Channel Power MOSFET (CR Micro)
  • HGP028N03A - Silicon N-Channel Power MOSFET (CR Micro)
  • HGP028N04A - Silicon N-Channel Power MOSFET (CR Micro)
  • HGP017N03A-G - Silicon N-Channel Power MOSFET (CR Micro)
  • HGP065NE4A - Silicon N-Channel Power MOSFET (CR Micro)
Other Datasheets by Hunteck

Full PDF Text Transcription

Click to expand full text
HGB029N06SL , HGP029N06SL P-1 60V N-Ch Power MOSFET Feature ◇ Optimized for high speed switching, Logic Level ◇ Enhanced Body diode dv/dt capability ◇ Enhanced Avalanche Ruggedness ◇ 100% UIS Tested, 100% Rg Tested ◇ Lead Free, Halogen Free Application VDS RDS(on),typ RDS(on),typ TO-263 VGS=10V VGS=4.5V RDS(on),typ RDS(on),typ TO-220 VGS=10V VGS=4.5V ID (Sillicon Limited) ID (Package Limited) 60 1.8 2.7 2.1 3.
