ICS844021I-01 CRYSTAL-TO- LVDS CLOCK GENERATOR

The ICS844021I-01 is an Ethernet Clock Generator and a member of the HiPerClocksTM HiPerClockS™ family of high performance devices from ICS. The ICS844021I-01 uses an 18pF parallel resonant crystal over the range of 24.5MHz - 34MHz. For Ether net applications, a 25MHz crystal is used. The ICS844021I.

ICS844021I-01 Features

* (1) Differential LVDS output

* Crystal oscillator interface, 18pF parallel resonant crystal (24.5MHz - 34MHz)

* Output frequency range: 122.5MHz - 170MHz

* VCO range: 490MHz - 680MHz

* RMS phase jitter @ 125MHz, using a 25MHz crystal (1.875MHz - 20MHz): 0.45

ICS844021I-01_ICS.pdf

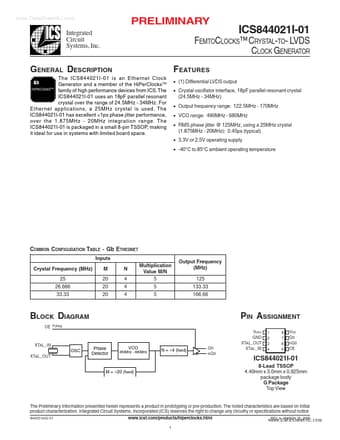

Preview of ICS844021I-01 PDF
