ICS844022I-02 - CRYSTAL-TO- LVDS CLOCK GENERATOR

ICS844022I-02 Description

www.DataSheet4U.com PRELIMINARY Integrated Circuit Systems, Inc.ICS844022I-02 FEMTOCLOCKS™ CRYSTAL-TO- LVDS CLOCK GENERATOR .
The ICS844022I-02 is an Ethernet Clock Generator and a member of the HiPerClocksTM HiPerClockS™ family of high performance devices from ICS.

ICS844022I-02 Features

* (1) Differential LVDS output
* Crystal oscillator interface, 18pF parallel resonant crystal (24.5MHz - 34MHz)
* Output frequency range: 61.25MHz - 170MHz
* VCO range: 490MHz - 680MHz
* RMS phase jitter @ 125MHz, using a 25MHz crystal (1.875MHz - 20MHz): 0.44

ICS844022I-02 Applications

* a 25MHz crystal is used and either 62.5MHz or 125MHz may be selected with the FREQ_SEL pin. The ICS844022I-02 has excellent

📥 Download Datasheet

Preview of ICS844022I-02 PDF

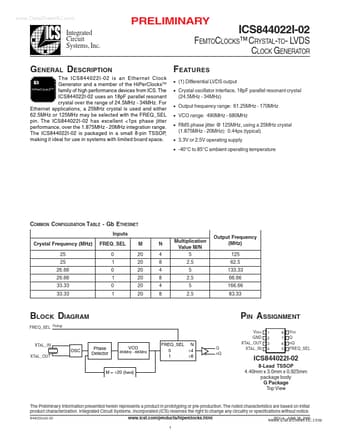

datasheet Preview Page 2 datasheet Preview Page 3
