ICS889874 Datasheet, Buffer/divider, ICS

ICS889874 Features

• Buffer/divider
• 2 LVPECL outputs
• Frequency divide select options: ÷ 1, ÷ 2, ÷4, ÷8, ÷16
• IN, nIN input can accept the following differential input levels: LVPECL, LVDS, CML

PDF File Details

Part number:

ICS889874

Manufacturer:

ICS

File Size:

190.89kb

Download:

📄 Datasheet

Description:

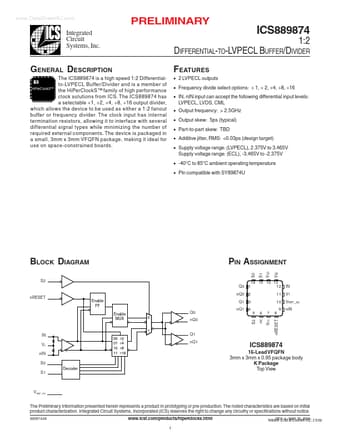

Differential-to-lvpecl buffer/divider. The ICS889874 is a high speed 1:2 Differentialto-LVPECL Buffer/Divider and is a member of HiPerClockS™ the HiPerClockS ™ family of hi

ICS889874 Application

• Applications Termination input. Non-inver ting LVPECL differential clock input. TABLE 1. PIN DESCRIPTIONS Number 1, 2 3, 4 5, 15, 16 6 7, 14 8 9 1
