ICS889832

1-TO-4 DIFFERENTIAL-TOLVDS FANOUT BUFFER

ICS889832 Features

* Four differential LVDS outputs

* IN, nIN pair can accept the following differential input levels: LVPECL, LVDS, SSTL

* 50Ω internal input termination to VT

* Output frequency: >2GHz

* Output skew: 25ps (maximum)

* Part-to-part skew: 200ps (maximum)

ICS889832 General Description

The ICS889832 is a high speed 1-to-4 DifferentialIC S to-LVDS Fanout Buffer and is a member of the HiPerClockS™ HiPerClockS™ family of high performance clock solutions from IDT. The ICS889832 is optimized for high speed and very low output skew, making it suitable for use in demanding applications s.

ICS889832 Datasheet (700.75 KB)

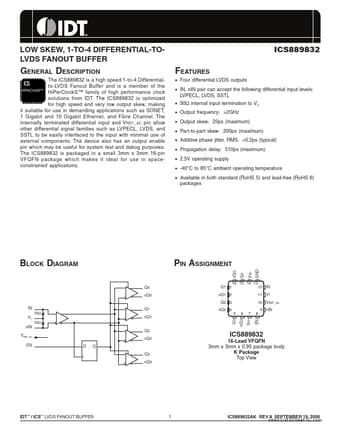

Preview of ICS889832 PDF

Datasheet Details

Part number:

ICS889832

Manufacturer:

IDT

File Size:

700.75 KB

Description:

1-to-4 differential-tolvds fanout buffer.
