ICS8532-01 Description

www.DataSheet4U.com Integrated Circuit Systems, Inc.ICS8532-01 LOW SKEW, 1-TO-17 DIFFERENTIAL-TO-3.3V LVPECL FANOUT BUFFER .
The ICS8532-01 is a low skew, 1-to-17, Differential-to-3.

ICS8532-01 Features

* 17 differential 3.3V LVPECL outputs
* Selectable CLK, nCLK or LVPECL clock inputs
* CLK, nCLK pair can accept the following differential input levels: LVDS, LVPECL, LVHSTL, SSTL, HCSL
* PCLK, nPCLK supports the following input types: LVPECL, CML, SSTL
* Maxi

ICS8532-01 Applications

* demanding well defined performance and repeatability. BLOCK DIAGRAM CLK_EN CLK nCLK PCLK nPCLK CLK_SEL D Q LE 0 1 Q0 - Q16 nQ0 - nQ16 PIN ASSIGNMENT VCCO nQ0 nQ1 nQ2 nQ3 nQ4 nQ5 Q0 Q1 Q2 Q3 Q4 Q5 VCCO nc nc VCC CLK nCLK CLK_SEL PCLK nPCLK VEE CLK_EN nc VCCO 1 2 3 4 5 6 7 8 9 52 51 50 49 48 47 4

📥 Download Datasheet

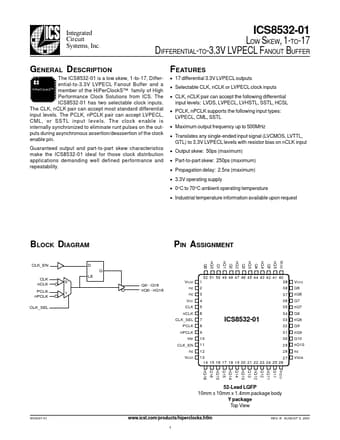

ICS8532-01 Datasheet Preview — Preview of ICS8532-01 PDF
