ICS85322 - LVPECL TRANSLATOR

ICS85322 Description

www.DataSheet4U.com Integrated Circuit Systems, Inc.DUAL LVCMOS / LVTTL-TO-DIFFERENTIAL 2.5V / 3.3V LVPECL TRANSLATOR .
The ICS85322 is a Dual LVCMOS / LVTTL-toDifferential 2.

ICS85322 Features

* 2 differential 2.5V/3.3V LVPECL outputs
* Selectable CLK0, CLK1 LVCMOS clock inputs
* CLK0 and CLK1 can accepts the following input levels: LVCMOS or LVTTL
* Maximum output frequency up to 267MHz
* Part-to-part skew: 150ps (maximum)
* 3.3V operating

ICS85322 Applications

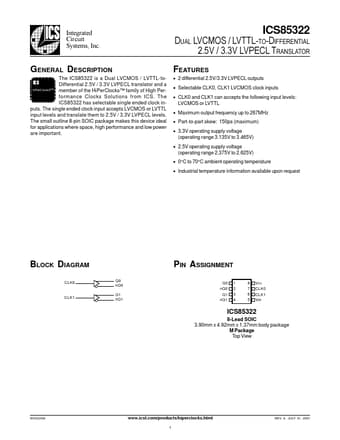

* where space, high performance and low power are important. ,&6 BLOCK DIAGRAM CLK0 Q0 nQ0 Q1 nQ1 PIN ASSIGNMENT Q0 nQ0 Q1 nQ1 1 2 3 4 8 7 6 5 VCC CLK0 CLK1 VEE CLK1 ICS85322 8-Lead SOIC 3.90mm x 4.92mm x 1.37mm body package M Package Top View 85322AM www. icst. com/products/hiperclocks. html 1 RE
