ICS8533-01, LVPECL FANOUT BUFFER

www.DataSheet4U.com Integrated Circuit Systems, Inc.ICS8533-01 LOW SKEW, 1-TO-4 DIFFERENTIAL-TO-3.3V LVPECL FANOUT BUFFER .
The ICS8533-01 is a low skew, high performance 1-to-4 Differential-to-3.

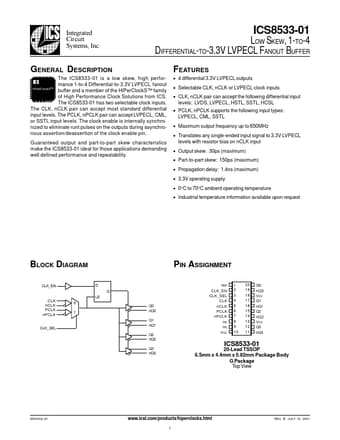

datasheet Preview Page 1 from Datasheet4u.com

ICS8533-01_ICST.pdf

ICS8533-01 Datasheet Preview — Preview of ICS8533-01 PDF

Datasheet Details

Part number:

ICS8533-01

Manufacturer:

ICST

File Size:

152.19 KB

Description:

LVPECL FANOUT BUFFER

Features

* 4 differential 3.3V LVPECL outputs
* Selectable CLK, nCLK or LVPECL clock inputs
* CLK, nCLK pair can accept the following differential input levels: LVDS, LVPECL, HSTL, SSTL, HCSL
* PCLK, nPCLK supports the following input types: LVPECL, CML, SSTL
* Maximum

Applications

* demanding well defined performance and repeatability. BLOCK DIAGRAM CLK_EN D Q LE CLK nCLK PCLK nPCLK 0 1 Q0 nQ0 Q1 nQ1 Q2 nQ2 Q3 nQ3 PIN ASSIGNMENT VEE CLK_EN CLK_SEL CLK nCLK PCLK nPCLK nc nc VCC 1 2 3 4 5 6 7 8 9 10 20 19 18 17 16 15 14 13 12 11 Q0 nQ0 VCC Q1 nQ1 Q2 nQ2 VCC Q3 nQ3 CLK_SEL ICS
