ICS8533-11, LVPECL FANOUT BUFFER

www.DataSheet4U.com Integrated Circuit Systems, Inc.ICS8533-11 LOW SKEW, 1-TO-4, CRYSTAL OSCILLATOR/ DIFFERENTIAL-TO-3.3V LVPECL FANOUT BUFFER FEAT.
The ICS8533-11 is a low skew, high performance ,&6 1-to-4 Crystal Oscillator/Differential-to-3.

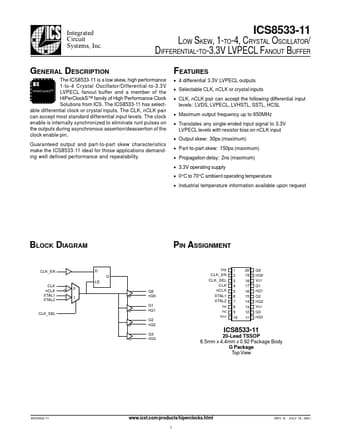

datasheet Preview Page 1 from Datasheet4u.com

ICS8533-11_ICST.pdf

ICS8533-11 Datasheet Preview — Preview of ICS8533-11 PDF

Datasheet Details

Part number:

ICS8533-11

Manufacturer:

ICST

File Size:

164.30 KB

Description:

LVPECL FANOUT BUFFER

Features

* 4 differential 3.3V LVPECL outputs
* Selectable CLK, nCLK or crystal inputs
* CLK, nCLK pair can accept the following differential input levels: LVDS, LVPECL, LVHSTL, SSTL, HCSL
* Maximum output frequency up to 650MHz
* Translates any single-ended input sign

Applications

* demanding well defined performance and repeatability. BLOCK DIAGRAM CLK_EN D Q LE CLK nCLK XTAL1 XTAL2 0 1 Q0 nQ0 Q1 nQ1 Q2 nQ2 Q3 nQ3 PIN ASSIGNMENT VEE CLK_EN CLK_SEL CLK nCLK XTAL1 XTAL2 nc nc VCC 1 2 3 4 5 6 7 8 9 10 20 19 18 17 16 15 14 13 12 11 Q0 nQ0 VCC Q1 nQ1 Q2 nQ2 VCC Q3 nQ3 CLK_SEL I
