ICS670-03 Datasheet, Multiplier, IDT

ICS670-03 Features

• Multiplier
• Packaged in 16-pin SOIC
• Pb (lead) free package, RoHS compliant
• Clock inputs from 5 to 210 MHz (see page 2)
• Patented PLL with low phase noise

PDF File Details

Part number:

ICS670-03

Manufacturer:

IDT

File Size:

142.83kb

Download:

📄 Datasheet

Description:

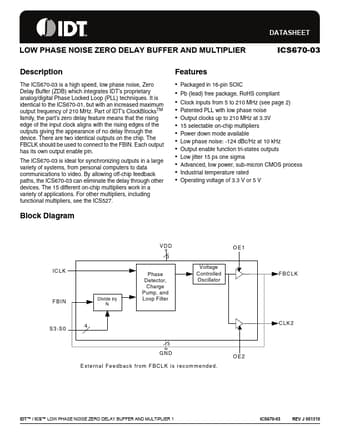

Low phase noise zero delay buffer and multiplier. The ICS670-03 is a high speed, low phase noise, Zero Delay Buffer (ZDB) which integrates IDT’s proprietary analog/digital Phase Locke

ICS670-03 Application

• Applications For other multipliers, including functional multipliers, see the ICS527. Block Diagram Features
• Packaged in 16-pin SOIC
