ICS671-01

ZERO DELAY LOW SKEW BUFFER/MULTIPLIER

ICS671-01 Features

* Packaged in 16 pin SOIC

* Pb (lead) free package, RoHS compliant

* Clock outputs from 5 to 160 MHz

* Zero input-output delay

* Integrated x2 or x4 selections, and x5 for CLK7

* Eight low-skew (

ICS671-01 General Description

The ICS671-01 is a low phase noise, high speed PLL based, 8 output, low skew zero delay buffer and multiplier. Based on IDT’s proprietary low jitter Phase Locked Loop (PLL) techniques, the device provides eight low skew outputs at speeds up to 160 MHz at 3.3V. The part includes a bank of six outputs.

ICS671-01 Datasheet (305.76 KB)

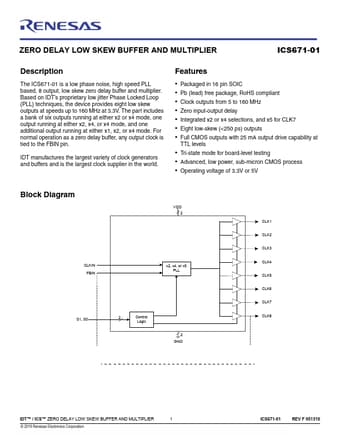

Preview of ICS671-01 PDF

Datasheet Details

Part number:

ICS671-01

Manufacturer:

Renesas ↗

File Size:

305.76 KB

Description:

Zero delay low skew buffer/multiplier.
