ICS671-15

Low Skew Buffer

ICS671-15 Features

* Packaged in 24-pin TSSOP

* Input-output delay (±300 ps)

* Two ZDB 66 MHz outputs from a 66 MHz input AGP clock

* Two ZDB 66 MHz outputs, plus four 33 MHz outputs from a 33 MHz input CPU clock

* Output-to-output skew is less than 250 ps

* Full CMOS

ICS671-15 General Description

The ICS671-15 is a low-jitter, low-skew, high-performance zero delay buffer (ZDB) for high-speed applications. The device is designed using ICS’ proprietary low-jitter PLL (Phase-Locked Loop) techniques. The ICS671-15 includes a ZDB bank of four outputs running at 33 MHz, and two outputs at 66 MHz f.

ICS671-15 Datasheet (157.50 KB)

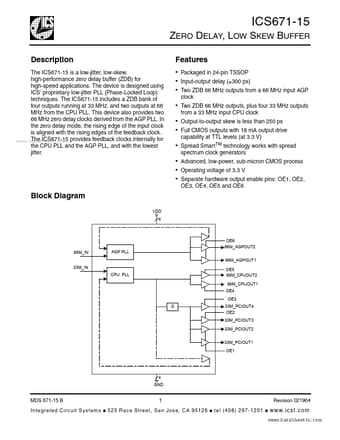

Preview of ICS671-15 PDF

Datasheet Details

Part number:

ICS671-15

Manufacturer:

Integrated Circuit Systems

File Size:

157.50 KB

Description:

Low skew buffer.
