ICS601-01 - LOW PHASE NOISE CLOCK MULTIPLIER

ICS601-01 Description

LOW PHASE NOISE CLOCK MULTIPLIER DATASHEET ICS601-01 .
The ICS601-01 is a low-cost, low phase noise, high-performance clock synthesizer for applications which require low phase noise and low jitter.

ICS601-01 Features

* Packaged in 16-pin SOIC or TSSOP
* Pb (lead) free package
* Uses fundamental 10 - 27 MHz crystal or clock
* Patented PLL with the lowest phase noise
* Output clocks up to 156 MHz at 3.3 V
* Low phase noise: -132 dBc/Hz at 10 kHz
* Low jitter

ICS601-01 Applications

* which require low phase noise and low jitter. It is IDT’s lowest phase noise multiplier, and also the lowest CMOS part in the industry. Using IDT’s patented analog and digital Phase-Locked Loop (PLL) techniques, the chip accepts a 10 - 27 MHz crystal or clock input, and produces output clocks up to

📥 Download Datasheet

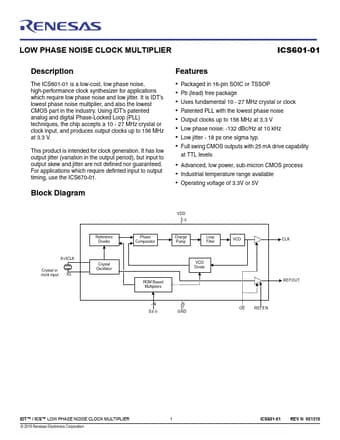

Preview of ICS601-01 PDF
datasheet Preview Page 2 datasheet Preview Page 3
