ICS674-01

USER CONFIGURABLE DIVIDER

ICS674-01 Features

* Packaged in 28-pin SSOP (150 mil body)

* Pb (lead) free package, RoHS compliant

* General purpose programmable divider

* Supports ICS673 PLL Building Block

* User determines the divide by setting input pins

* Pull-ups on all select inputs

* I

ICS674-01 General Description

The ICS674-01 consists of two separate configurable dividers. The A Divider is a 7-bit divider and can divide by 3 to 129. The B Divider consists of a 9-bit divider followed by a post divider. The 9-bit divider can divide by 12 to 519. The post divider has eight settings of 1, 2, 4, 5, 6, 7, 8, and .

ICS674-01 Datasheet (248.94 KB)

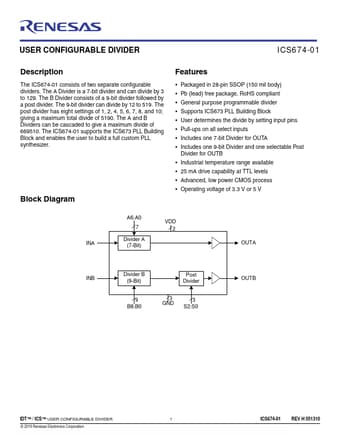

Preview of ICS674-01 PDF

Datasheet Details

Part number:

ICS674-01

Manufacturer:

Renesas ↗

File Size:

248.94 KB

Description:

User configurable divider.
