ICS8S89831I Datasheet, Buffer, IDT

ICS8S89831I Features

  • Buffer
  • Four LVPECL/ECL outputs
  • IN, nIN input can accept the following differential input levels: LVPECL, LVDS, CML, SSTL
  • 50Ω internal input termination to VT

PDF File Details

Part number:

ICS8S89831I

Manufacturer:

IDT

File Size:

669.81kb

Download:

📄 Datasheet

Description:

Differential lvpecl-to-lvpecl/ecl fanout buffer. The ICS8S89831I is a high speed 1-to-4 DifferentialICS to-LVPECL/ECL Fanout Buffer. The ICS8S89831I is HiPerClockS™ optimized for hig

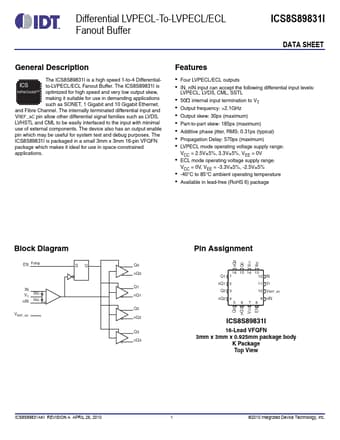

Datasheet Preview: ICS8S89831I 📥 Download PDF (669.81kb)
Page 2 of ICS8S89831I Page 3 of ICS8S89831I

ICS8S89831I Application

  • Applications such as SONET, 1 Gigabit and 10 Gigabit Ethernet, and Fibre Channel. The internally terminated differential input and VREF_AC pin allow
