ICS8S89832I - 1-to-4 Differential-to-LVDS Fanout Buffer

ICS8S89832I Description

Low Skew, 1-to-4 Differential-to-LVDS Fanout Buffer ICS8S89832I DATA SHEET General .
The ICS8S89832I is a high speed 1-to-4 ICS Differential-to-LVDS Fanout Buffer.

ICS8S89832I Features

* Four differential LVDS output pairs
* IN, nIN input pairs can accept the following differential input levels: LVPECL, LVDS, SSTL
* 50Ω internal input termi

ICS8S89832I Applications

* such as SONET, 1 Gigabit and 10 Gigabit Ethernet, and Fibre Channel. The internally terminated differential input and VREF_AC pin allow other differential signal families such as LVPECL, LVDS, and SSTL to be easily interfaced to the input with minimal use of external components. The device also has

📥 Download Datasheet

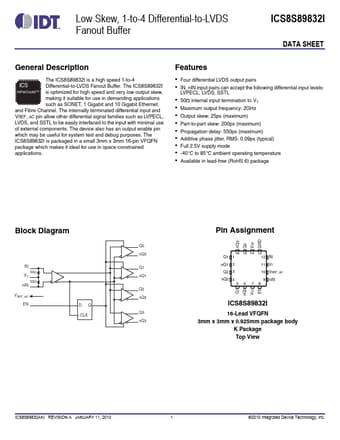

Preview of ICS8S89832I PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ICS8S89832I
Manufacturer
IDT
File Size
644.66 KB
Datasheet
ICS8S89832I-IDT.pdf
Description
1-to-4 Differential-to-LVDS Fanout Buffer
