ICS8S89874I

1:2 Differential-to-LVPECL Buffer/Divider

ICS8S89874I Features

* Two LVPECL/ECL output pairs

* Frequency divide select options: ÷1 (pass through), ÷2, ÷4, ÷8, ÷16

* IN, nIN input can accept the following differential input levels: LVPECL, LVDS, CML

* Output frequency: 2GHz (maximum)

* Output skew: 15ps (maximum)

ICS8S89874I General Description

The ICS8S89874I is a high speed 1:2 Differential-to- LVPECL Buffer/ Divider. The ICS8S89874I has a selectable ÷1, ÷2, ÷4, ÷8, ÷16 output divider, which allows the device to be used as either a 1:2 fanout buffer or frequency divider. The clock input has internal termination resistors, allowing it to .

ICS8S89874I Datasheet (680.36 KB)

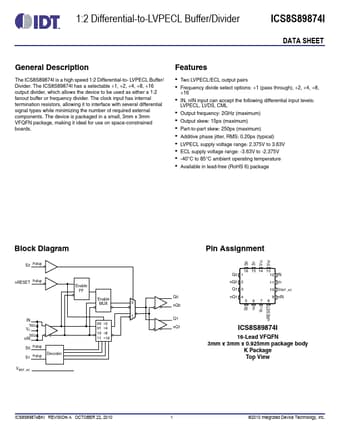

Preview of ICS8S89874I PDF

Datasheet Details

Part number:

ICS8S89874I

Manufacturer:

IDT

File Size:

680.36 KB

Description:

1:2 differential-to-lvpecl buffer/divider.
