IN74AC257 Datasheet - IK Semiconductor

IN74AC257 Quad 2-1 Data Selector/Multiplexer

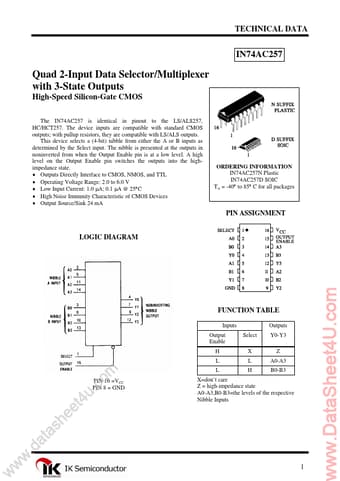

TECHNICAL DATA IN74AC257 Quad 2-Input Data Selector/Multiplexer with 3-State Outputs High-Speed Silicon-Gate CMOS The IN74AC257 is identical in pinout to the LS/ALS257, HC/HCT257. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LS/ALS outputs. This device selects a (4-bit) nibble from either the A or B inputs as determined by the Select input. The nibble is presented at the outputs in noninverted from when the Output Enable pin is at.

IN74AC257 Datasheet (273.30 KB)

Preview of IN74AC257 PDF

Datasheet Details

Part number:

IN74AC257

Manufacturer:

IK Semiconductor

File Size:

273.30 KB

Description:

Quad 2-1 data selector/multiplexer.
