IN74ACT132 Datasheet - IK Semiconductor

IN74ACT132 Quad 2-Input NAND Schmitt-Trigger Inverter

TECHNICAL DATA IN74ACT132 Quad 2-Input NAND Gate with Schmitt-Trigger Inputs High-Performance Silicon-Gate CMOS The IN74ACT132 is identical in pinout to the LS/ALS132, HC/HCT132. The IN74ACT132 may be used as a level converter for interfacing TTL or NMOS outputs to High Speed CMOS inputs. The IN74ACT132 can be used to enhance noise immunity or to square up slowly changing waveforms. TTL/NMOS Compatible Input Levels Outputs Directly Interface to CMOS, NMOS, and TTL .

IN74ACT132_IKSemiconductor.pdf

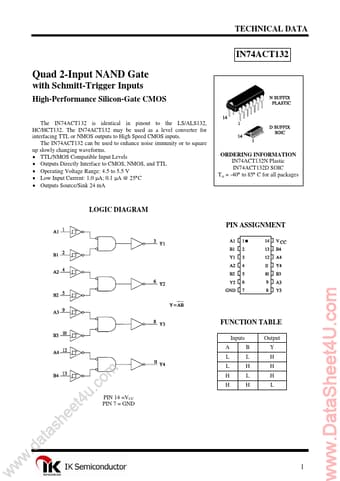

Preview of IN74ACT132 PDF
IN74ACT132 Datasheet Preview Page 2 IN74ACT132 Datasheet Preview Page 3

Datasheet Details

Part number:

IN74ACT132

Manufacturer:

IK Semiconductor

File Size:

242.92 KB

Description:

Quad 2-input nand schmitt-trigger inverter.
