IN74ACT10 Datasheet - IK Semiconductor

IN74ACT10 Triple 3-Input Positive-NAND Gate

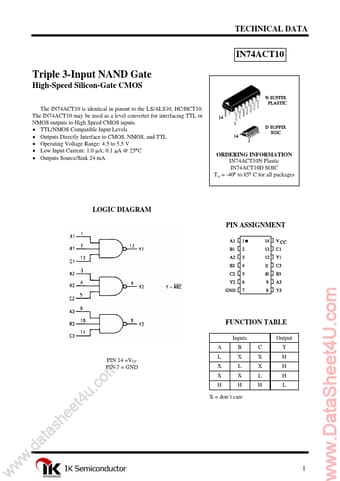

TECHNICAL DATA IN74ACT10 Triple 3-Input NAND Gate High-Speed Silicon-Gate CMOS The IN74ACT10 is identical in pinout to the LS/ALS10, HC/HCT10. The IN74ACT10 may be used as a level converter for interfacing TTL or NMOS outputs to High Speed CMOS inputs. TTL/NMOS Compatible Input Levels Outputs Directly Interface to CMOS, NMOS, and TTL Operating Voltage Range: 4.5 to 5.5 V Low Input Current: 1.0 µA; 0.1 µA @ 25°C Outputs Source/Sink 24 mA ORDERI.

IN74ACT10_IKSemiconductor.pdf

Preview of IN74ACT10 PDF
IN74ACT10 Datasheet Preview Page 2 IN74ACT10 Datasheet Preview Page 3

Datasheet Details

Part number:

IN74ACT10

Manufacturer:

IK Semiconductor

File Size:

210.58 KB

Description:

Triple 3-input positive-nand gate.
