IN74ACT11 Triple 3-Input AND Gate

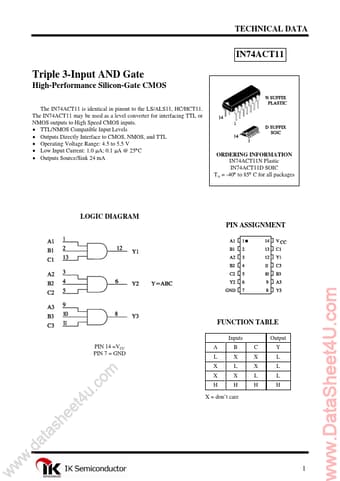

TECHNICAL DATA IN74ACT11 Triple 3-Input AND Gate High-Performance Silicon-Gate CMOS The IN74ACT11 is identical in pinout to the LS/ALS11, HC/HCT11. The IN74ACT11 may be used as a level converter for interfacing TTL or NMOS outputs to High Speed CMOS inputs. TTL/NMOS Compatible Input Levels Outputs Directly Interface to CMOS, NMOS, and TTL Operating Voltage Range: 4.5 to 5.5 V Low Input Current: 1.0 µA; 0.1 µA @ 25°C Outputs Source/Sink 24 mA O.

IN74ACT11_IKSemiconductor.pdf

Preview of IN74ACT11 PDF
IN74ACT11 Datasheet Preview Page 2 IN74ACT11 Datasheet Preview Page 3

Datasheet Details

Part number:

IN74ACT11

Manufacturer:

IK Semiconductor

File Size:

233.20 KB

Description:

Triple 3-input and gate.
