IN74ACT125 Datasheet - IK Semiconductor

IN74ACT125 Quad 3-State Buffer

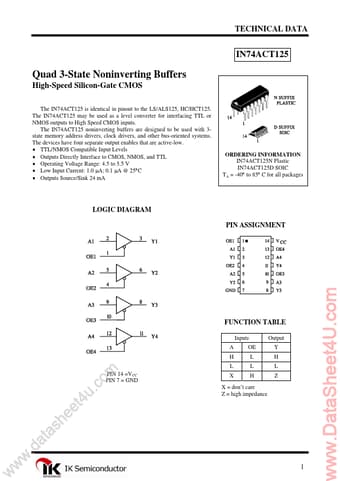

TECHNICAL DATA IN74ACT125 Quad 3-State Noninverting Buffers High-Speed Silicon-Gate CMOS The IN74ACT125 is identical in pinout to the LS/ALS125, HC/HCT125. The IN74ACT125 may be used as a level converter for interfacing TTL or NMOS outputs to High Speed CMOS inputs. The IN74ACT125 noninverting buffers are designed to be used with 3state memory address drivers, clock drivers, and other bus-oriented systems. The devices have four separate output enables that are active-low. TTL/NMOS Co.

IN74ACT125_IKSemiconductor.pdf

Preview of IN74ACT125 PDF
IN74ACT125 Datasheet Preview Page 2 IN74ACT125 Datasheet Preview Page 3

Datasheet Details

Part number:

IN74ACT125

Manufacturer:

IK Semiconductor

File Size:

260.91 KB

Description:

Quad 3-state buffer.
