2SB1186A PNP Transistor

INCHANGE

2SB1186A Description

isc Silicon PNP Power Transistor .
High Collector-Emitter Breakdown Voltage- : V(BR)CEO= -160V(Min. Good Linearity of hFE. Complement to Type 2SD1763A. Minimum Lot-to.

2SB1186A Applications

* Power amplifier applications.
* Driver stage amplifier applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -160 V VCEO Collector-Emitter Voltage -160 V VEBO Emitter-Base Voltage -5 V IC Collector Current-Continuous -1.5

📥 Download Datasheet

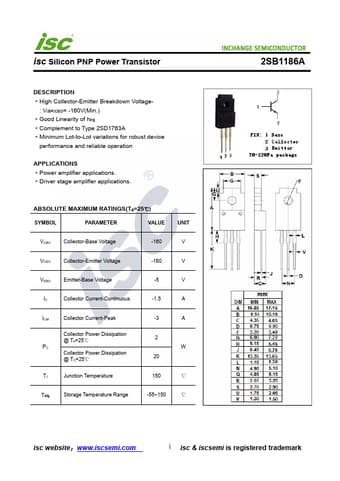

2SB1186A Datasheet Preview — Preview of 2SB1186A PDF

Datasheet Details

Part number: 2SB1186A
Manufacturer: INCHANGE
File Size: 212.66 KB
Datasheet: 2SB1186A-INCHANGE.pdf
Description: PNP Transistor
