2SC3416 NPN Transistor

INCHANGE

Description

isc Silicon NPN Power Transistor .
High Collector-Emitter Breakdown Voltage- V(BR)CEO= 200V (Min). Complement to Type 2SA1352. Minimum Lot-to-Lot variations for robust devi.

📥 Download Datasheet

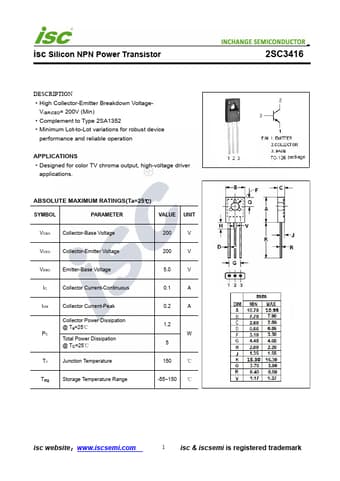

2SC3416 Datasheet Preview — Preview of 2SC3416 PDF

Datasheet Specifications

Part number: 2SC3416
Manufacturer: INCHANGE
File Size: 193.97 KB
Datasheet: 2SC3416-INCHANGE.pdf
Description: NPN Transistor

Applications

* Designed for color TV chroma output, high-voltage driver applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 200 V VCEO Collector-Emitter Voltage 200 V VEBO Emitter-Base Voltage 5.0 V IC Collector Current-Continuous 0.1 A IC
