* High Breakdown Voltage
* Low Collector Output Capacitance
* Ideal for Chroma Circuit CLASSIFICATION OF hFE Product-Rank 2SC3415-M Range 39~82 2SC3415-N 56~120 2SC3415-P 82~180 TO-92 GH J AD B K E CF Emitter Collector
* Base REF. A B C D E F G H J K Millimeter Min. Max

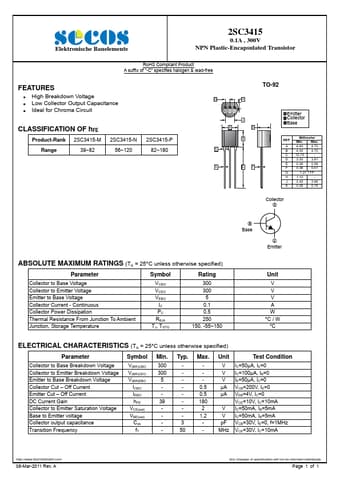

2SC3415
SeCoS
79.57 KB
Npn plastic-encapsulated transistor.
Elektronische Bauelemente
2SC3415
0.1A , 300V NPN Plastic-Encapsulated Transistor
RoHS Compliant Product A suffix of “-C” specifies halogen & lead-f.
