2SC3413 Datasheet - Hitachi Semiconductor

2SC3413 Silicon NPN Epitaxial Transistor

2SC3413 Silicon NPN Epitaxial Application Low frequency low noise amplifier HF amplifier Outline SPAK 1 23 1. Emitter 2. Collector 3. Base 2SC3413 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC PC Tj Tstg Ratings 40 30 5 100 300 150 55 to +150 Unit V V V mA mW °C °C Electrical .

2SC3413_HitachiSemiconductor.pdf

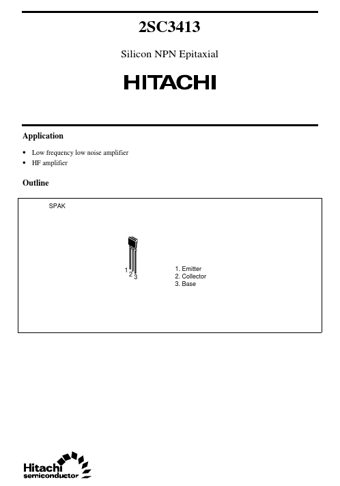

Preview of 2SC3413 PDF
2SC3413 Datasheet Preview Page 2 2SC3413 Datasheet Preview Page 3

Datasheet Details

Part number:

2SC3413

Manufacturer:

Hitachi Semiconductor

File Size:

24.38 KB

Description:

Silicon npn epitaxial transistor.
