2SC3470 Datasheet - Hitachi Semiconductor

2SC3470 Silicon NPN Epitaxial Transistor

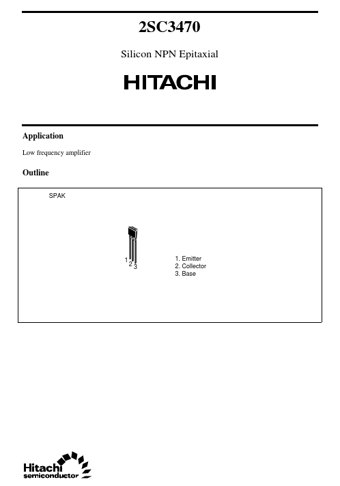

2SC3470 Silicon NPN Epitaxial Application Low frequency amplifier Outline SPAK 1 23 1. Emitter 2. Collector 3. Base 2SC3470 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC PC Tj Tstg Ratings 55 50 5 100 300 150 55 to +150 Unit V V V mA mW °C °C Electrical Characteristics (Ta = 25°C) Item Collector .

2SC3470_HitachiSemiconductor.pdf

Preview of 2SC3470 PDF
2SC3470 Datasheet Preview Page 2 2SC3470 Datasheet Preview Page 3

Datasheet Details

Part number:

2SC3470

Manufacturer:

Hitachi Semiconductor

File Size:

24.13 KB

Description:

Silicon npn epitaxial transistor.
