2SC3417 - PNP/NPN Epitaxial Planar Silicon Transistors

Datasheet Summary

Features

  • High breakdown voltage : VCEO≤300V.
  • Excellent high frequency characteristics : Cre=1.8pF(typ).
  • Adoption of MBIT process. 3.0 1.5 7.0 1.6 0.8 0.8 0.6 3.0 11.0 15.5 0.5 ( ) : 2SA1353 2.4 4.8 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Collector Dissipation Junction Temperature Storage Temperature Symbol VCBO VCEO VEBO IC ICP PC Tj.

📥 Download Datasheet

Datasheet preview – 2SC3417

Datasheet Details

Part number 2SC3417
Manufacturer Sanyo Semicon Device
File Size 64.61 KB
Description PNP/NPN Epitaxial Planar Silicon Transistors
Datasheet download datasheet 2SC3417 Datasheet
Additional preview pages of the 2SC3417 datasheet.

📁 Similar Datasheet

  • 2SC3417 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
  • 2SC3412 - Power Transistor (Inchange Semiconductor)
  • 2SC3413 - Silicon NPN Epitaxial Transistor (Hitachi Semiconductor)
  • 2SC3415 - NPN Plastic-Encapsulated Transistor (SeCoS)
  • 2SC3415 - Triple Diffused Planar NPN Silicon Transistor (Rohm)
  • 2SC3415S - Chroma Amplifier Transistor (Rohm)
  • 2SC3416 - NPN Transistor (INCHANGE)
  • 2SC3419 - Silicon NPN Transistor (Toshiba Semiconductor)
  • 2SC3419 - NPN Transistor (INCHANGE)
  • 2SC3400 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo)
Other Datasheets by Sanyo Semicon Device
  • 2SC3416 - PNP/NPN Epitaxial Planar Silicon Transistors
  • 2SC3402 - PNP/NPN Epitaxial Planar Silicon Transistors
  • 2SC3446 - NPN Transistor
  • 2SC3447 - NPN Transistor
  • 2SC3448 - NPN Triple Diffused Planar Silicon Transistor
  • 2SC3449 - NPN Triple Diffused Planar Silicon Transistor
  • 2SC3450 - NPN Triple Diffused Planar Silicon Transistor
  • 2SC3451 - NPN Triple Diffused Planar Silicon Transistor

Full PDF Text Transcription

Click to expand full text

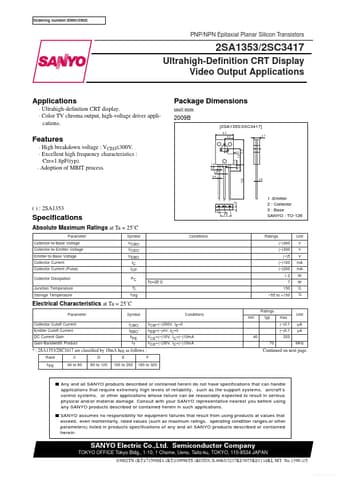

Ordering number:ENN1390D PNP/NPN Epitaxial Planar Silicon Transistors 2SA1353/2SC3417 Ultrahigh-Definition CRT Display Video Output Applications Applications · Ultrahigh-definition CRT display. · Color TV chroma output, high-voltage driver applications. Package Dimensions unit:mm 2009B [2SA1353/2SC3417] 8.0 4.0 2.7 Features · High breakdown voltage : VCEO≤300V. · Excellent high frequency characteristics : Cre=1.8pF(typ). · Adoption of MBIT process. 3.0 1.5 7.0 1.6 0.8 0.8 0.6 3.0 11.0 15.5 0.5 ( ) : 2SA1353 2.4 4.
