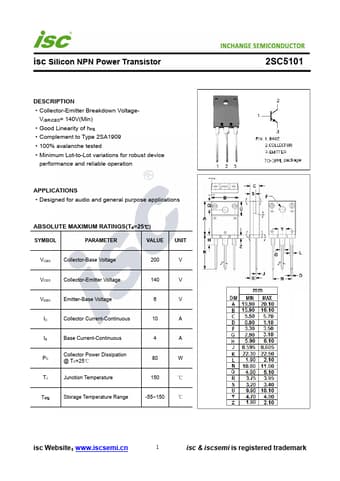

2SC5101 Datasheet, Transistor, INCHANGE

PDF File Details

Part number:

2SC5101

Manufacturer:

INCHANGE

File Size:

191.45kb

Download:

📄 Datasheet

Description:

Npn transistor.

Collector-Emitter Breakdown Voltage- V(BR)CEO= 140V(Min)

Good Linearity of hFE

Complement to Type 2SA1909

2SC5101 Application

• Applications
• Designed for audio and general purpose applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO C
