2SC5417 - NPN Transistor

📥 Download Datasheet

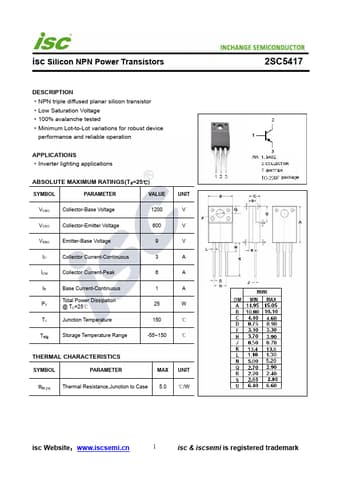

Preview of 2SC5417 PDF
datasheet Preview Page 2

Datasheet Details

Part number 2SC5417
Manufacturer INCHANGE
File Size 177.23 KB
Description NPN Transistor
Datasheet download datasheet 2SC5417-INCHANGE.pdf

2SC5417 Product details

Description

NPN triple diffused planar silicon transistor Low Saturation Voltage 100% avalanche tested Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Inverter lighting applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 1200 V VCEO Collector-Emitter Voltage 600 V VEBO Emitter-Base Voltage 9 V IC Collector Current-Continuous 3 A ICM Collector Current-Peak 6 A
