2SD1065 - NPN Transistor

The 2SD1065 by INCHANGE is a NPN Transistor. Below is the official datasheet preview.

📥 Download Datasheet

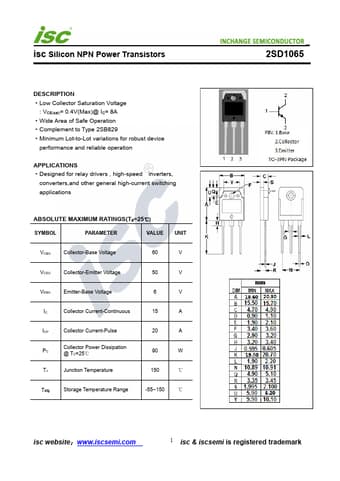

Official preview page of the 2SD1065 NPN Transistor datasheet (INCHANGE).

Datasheet Details

Part number 2SD1065
Manufacturer INCHANGE
File Size 214.56 KB
Description NPN Transistor
Datasheet download datasheet 2SD1065-INCHANGE.pdf
Additional preview pages of the 2SD1065 datasheet.

2SD1065 Product details

Description

Low Collector Saturation Voltage : VCE(sat)= 0.4V(Max)@ IC= 8A Wide Area of Safe Operation Complement to Type 2SB829 Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for relay drivers , high-speed inverters, converters,and other general high-current switching applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 60 V VCEO Collector-Emitter Voltage 50 V VE
