2SD1466 - NPN Transistor

2SD1466 Description

INCHANGE Semiconductor isc Silicon NPN Darlington Power Transistor 2SD1466 .
High Collector-Emitter Breakdown Voltage- : V(BR)CEO= 450V(Min). Low Collector-Emitter Saturation Voltage- : VCE(sat)= 1.

2SD1466 Applications

* Power amplification applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 500 V VCEO Collector-Emitter Voltage 450 V VEBO Emitter-Base Voltage 7 V IC Collector Current-Continuous 15 A ICM Collector Current-Peak PC Collect

📥 Download Datasheet

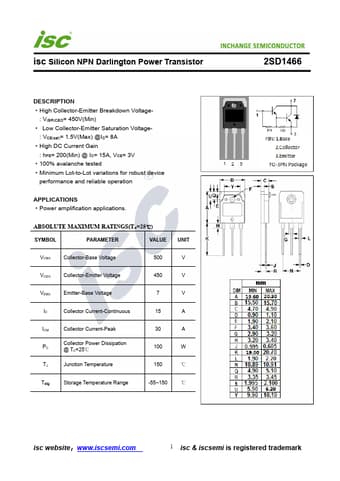

Preview of 2SD1466 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SD1466
Manufacturer
INCHANGE
File Size
202.12 KB
Datasheet
2SD1466-INCHANGE.pdf
Description
NPN Transistor
