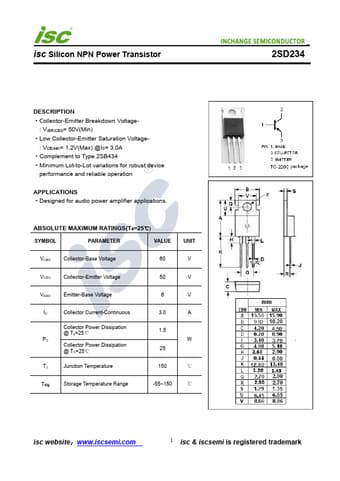

2SD234 Datasheet, Transistor, INCHANGE

PDF File Details

Part number:

2SD234

Manufacturer:

INCHANGE

File Size:

209.47kb

Download:

📄 Datasheet

Description:

Npn transistor.

Collector-Emitter Breakdown Voltage- : V(BR)CEO= 50V(Min)

Low Collector-Emitter Saturation Voltage- : VCE(sat)= 1.2

2SD234 Application

• Applications
• Designed for audio power amplifier applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Coll
