2SD2349 NPN Transistor

INCHANGE

Description

isc Silicon NPN Power Transistor INCHANGE Semiconductor 2SD2349 .
High Breakdown Voltage- : VCBO= 1500V (Min). Low Saturation Voltage. High Switching Speed. Built-in Damper Diode. Minimum Lot-to-.

📥 Download Datasheet

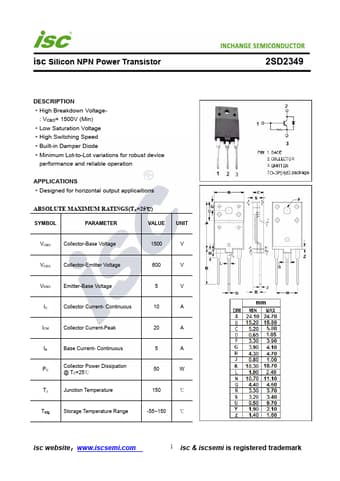

2SD2349 Datasheet Preview — Preview of 2SD2349 PDF

Datasheet Specifications

Part number: 2SD2349
Manufacturer: INCHANGE
File Size: 202.99 KB
Datasheet: 2SD2349-INCHANGE.pdf
Description: NPN Transistor

Applications

* Designed for horizontal output applicaitions ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 1500 V VCEO Collector-Emitter Voltage 600 V VEBO Emitter-Base Voltage 5 V IC Collector Current- Continuous 10 A ICM Collector Current-Peak
