IPP030N10N5, N-Channel MOSFET

isc N-Channel MOSFET Transistor INCHANGE Semiconductor IPP030N10N5，IIPP030N10N5 *.

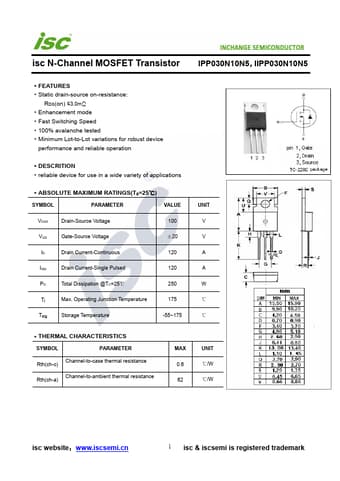

datasheet Preview Page 1 from Datasheet4u.com

IPP030N10N5-INCHANGE.pdf

IPP030N10N5 Datasheet Preview — Preview of IPP030N10N5 PDF

Datasheet Details

Part number:

IPP030N10N5

Manufacturer:

INCHANGE

File Size:

241.47 KB

Description:

N-Channel MOSFET

Features

* Static drain-source on-resistance: RDS(on) ≤3.0mΩ
* Enhancement mode
* Fast Switching Speed
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation
* DESCRITION

Applications

* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 100 VGS Gate-Source Voltage ±20 ID Drain Current-Continuous 120 IDM Drain Current-Single Pulsed 120 PD Total Dissipation @TC=25℃ 250 Tj Max. Operating Junction Temperature 175 Tstg Storage
