IXTA220N075T Datasheet - INCHANGE

IXTA220N075T, N-Channel MOSFET

isc N-Channel MOSFET Transistor IXTA220N075T *.

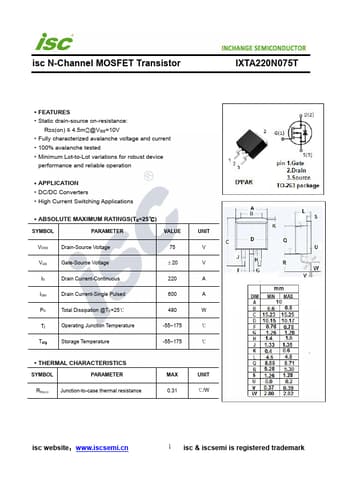

datasheet Preview Page 1 from Datasheet4u.com

IXTA220N075T-INCHANGE.pdf

IXTA220N075T Datasheet Preview — Preview of IXTA220N075T PDF

Datasheet Details

Part number:

IXTA220N075T

Manufacturer:

INCHANGE

File Size:

250.77 KB

Description:

N-Channel MOSFET

Features

* Static drain-source on-resistance: RDS(on) ≤ 4.5mΩ@VGS=10V
* Fully characterized avalanche voltage and current
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

Applications

* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 75 VGS Gate-Source Voltage ±20 ID Drain Current-Continuous 220 IDM Drain Current-Single Pulsed 600 PD Total Dissipation @TC=25℃ 480 Tj Operating Junction Temperature -55~175 Tstg Storage Te
