IXTA220N04T2-7 Power MOSFET

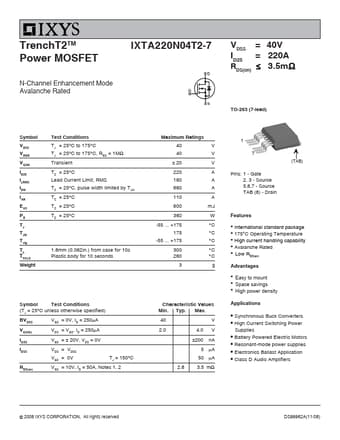

TrenchT2TM Power MOSFET N-Channel Enhancement Mode Avalanche Rated IXTA220N04T2-7 VDSS = ID25 = RDS(on) ≤ 40V 220A 3.5mΩ TO-263 (7-lead) Symbol VDSS VDGR VGSM ID25 ILRMS IDM IAR EAS PD TJ TJM Tstg TL TSOLD Weight Test Conditions TJ = 25°C to 175°C TJ = 25°C to 175°C, RGS = 1MΩ Transient TC = 25°C Lead Current Limit, RMS TC = 25°C, pulse width limited by TJM TC = 25°C TC = 25°C TC = 25°C 1.6mm (0.062in.) from case for 10s Plastic body for 10 seconds Symbol Test Conditions (TJ = 25°C unle.

IXTA220N04T2-7 Features

* z International standard package z 175°C Operating Temperature z High current handling capability z Avalanche Rated z Low RDS(on) Advantages z Easy to mount z Space savings z High power density Applications

* Synchronous Buck Converters

* High Current Switching Power Supplies
