* z International Standard Packages z 175°C Operating Temperature z High Current Handling Capability z Avalanche Rated z Low RDS(on) Advantages z Easy to Mount z Space Savings z High Power Density Applications z Automotive - Motor Drives - 12V Battery - ABS Systems z DC/DC Converters and Off-Line UP
IXTA200N055T2 Datasheet (165.95 KB)
IXTA200N055T2
IXYS
165.95 KB
Power mosfet.

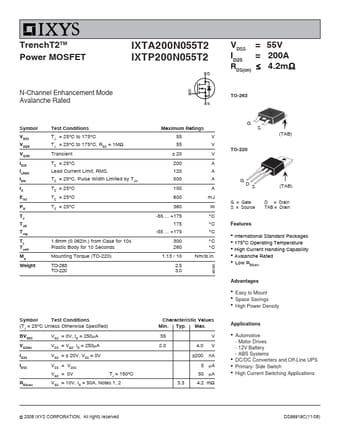

TrenchT2TM Power MOSFET
IXTA200N055T2 IXTP200N055T2
VDSS = ID25 =
RDS(on) ≤
55V 200A 4.2mΩ
N-Channel Enhancement Mode Avalanche Rated
TO-263
Sym.
