IXTP32N20T N-Channel MOSFET

INCHANGE

Description

isc N-Channel MOSFET Transistor IXTP32N20T *.

📥 Download Datasheet

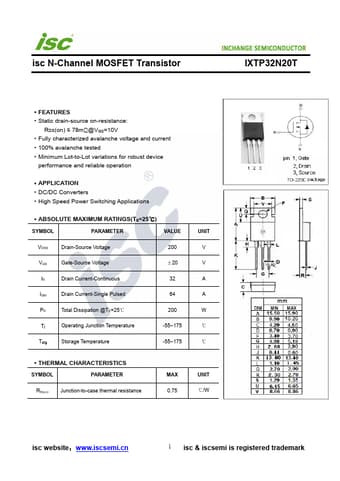

IXTP32N20T Datasheet Preview — Preview of IXTP32N20T PDF

Datasheet Specifications

Part number: IXTP32N20T
Manufacturer: INCHANGE
File Size: 246.76 KB
Datasheet: IXTP32N20T-INCHANGE.pdf
Description: N-Channel MOSFET

Features

* Static drain-source on-resistance: RDS(on) ≤ 78mΩ@VGS=10V
* Fully characterized avalanche voltage and current
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

Applications

* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 200 VGS Gate-Source Voltage ±20 ID Drain Current-Continuous 32 IDM Drain Current-Single Pulsed 64 PD Total Dissipation @TC=25℃ 200 Tj Operating Junction Temperature -55~175 Tstg Storage Tem
