SPD30P06P - P-Channel MOSFET

Datasheet Summary

Features

  • Static drain-source on-resistance: RDS(on)≤75mΩ(@VGS= -10V; ID= -21.5A).
  • Advanced trench process technology.
  • 100% avalanche tested.
  • Minimum Lot-to-Lot variations for robust device performance and reliable operation.

📥 Download Datasheet

Datasheet preview – SPD30P06P

Datasheet Details

Part number SPD30P06P
Manufacturer INCHANGE
File Size 259.94 KB
Description P-Channel MOSFET
Datasheet download datasheet SPD30P06P Datasheet
Additional preview pages of the SPD30P06P datasheet.

📁 Similar Datasheet

Other Datasheets by INCHANGE

Full PDF Text Transcription

Click to expand full text

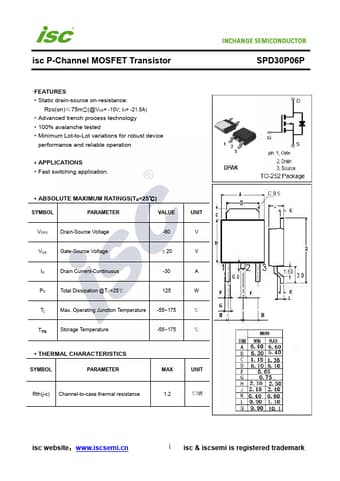

isc P-Channel MOSFET Transistor ·FEATURES ·Static drain-source on-resistance: RDS(on)≤75mΩ(@VGS= -10V; ID= -21.5A) ·Advanced trench process technology ·100% avalanche tested ·Minimum Lot-to-Lot variations for robust device performance and reliable operation ·APPLICATIONS ·Fast switching application. ·ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage -60 V VGS Gate-Source Voltage ±20 V ID Drain Current-Continuous -30 A PD Total Dissipation @TC=25℃ 125 W Tj Max. Operating Junction Temperature -55~175 ℃ Tstg Storage Temperature -55~175 ℃ ·THERMAL CHARACTERISTICS SYMBOL PARAMETER MAX UNIT Rth(j-c) Channel-to-case thermal resistance 1.2 ℃/W SPD30P06P isc website：www.iscsemi.
