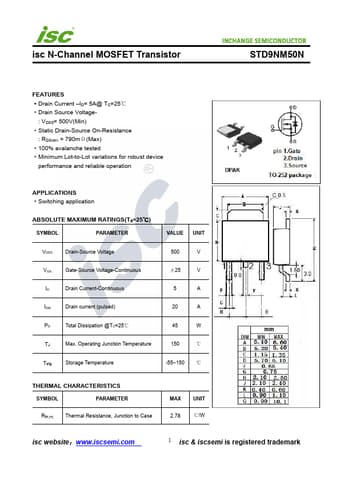

STD9NM50N Datasheet, Mosfet, INCHANGE

STD9NM50N Features

• Mosfet
• Drain Current
    –ID= 5A@ TC=25℃
• Drain Source Voltage- : VDSS= 500V(Min)
• Static Drain-Source On-Resistance : RDS(on) = 790mΩ(Max)
• 100% a

PDF File Details

Part number:

STD9NM50N

Manufacturer:

INCHANGE

File Size:

275.12kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

STD9NM50N Application

• Applications
• Switching application ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 500 V VG
