STF18N60M2 N-Channel MOSFET

STF18N60M2 Description

isc N-Channel MOSFET Transistor *.

STF18N60M2 Features

* With TO-220F packaging
* High speed switching
* Low gate input resistance
* Standard level gate drive
* Easy to use
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

STF18N60M2 Applications

* Power supply
* Switching applications
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 600 VGSS ID IDM Gate-Source Voltage Drain Current-Continuous @Tc=25℃ Tc=100℃ Drain Current-Single Pulsed ±25 13 8 52 PD Total Dissipation 25 Tj Operatin

📥 Download Datasheet

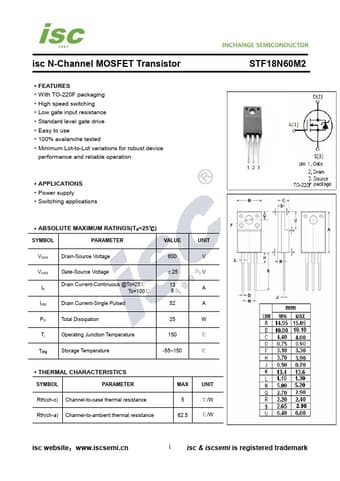

Preview of STF18N60M2 PDF
datasheet Preview Page 2

Datasheet Details

Part number
STF18N60M2
Manufacturer
INCHANGE
File Size
251.48 KB
Datasheet
STF18N60M2-INCHANGE.pdf
Description
N-Channel MOSFET
