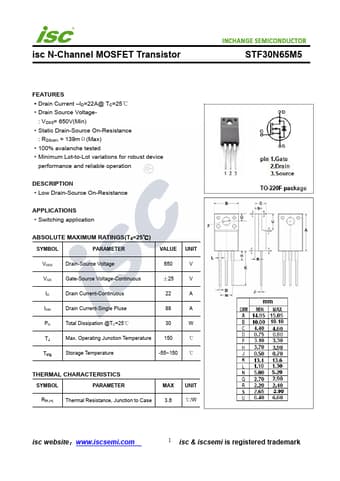

STF30N65M5 Datasheet - INCHANGE

STF30N65M5, N-Channel MOSFET

isc N-Channel MOSFET Transistor

Features

* Drain Current
* ID=22A@ TC=25℃
* Drain Source Voltage- : VDSS= 650V(Min)
* Static Drain-Source On-Resistance : RDS(on) = 139mΩ(Max)
* 100% avalanche tested

Applications

* Switching application ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 650 V VGS Gate-Source Voltage-Continuous ±25 V ID Drain Current-Continuous 22 A IDM Drain Current-Single Pluse 88 A PD Total Dissipation @TC=25℃ 30 W TJ Max.
O

STF30N65M5-INCHANGE.pdf
