STP4NK60ZFP N-Channel MOSFET

STP4NK60ZFP Description

isc N-Channel MOSFET Transistor *.

STP4NK60ZFP Features

* With TO-220F packaging
* High speed switching
* Easy to use
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation INCHANGE Semiconductor STP4NK60ZFP

STP4NK60ZFP Applications

* Power supply
* DC-DC converters
* Motor control
* Switching applications
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 600 VGSS ID IDM Gate-Source Voltage Drain Current-Continuous Tc=25℃ Tc=100℃ Drain Current-Single Pulsed ±30 4 2.5

📥 Download Datasheet

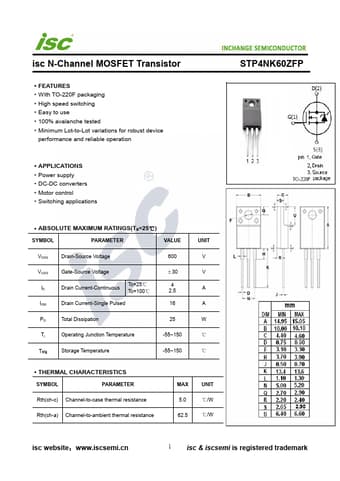

Preview of STP4NK60ZFP PDF
datasheet Preview Page 2

Datasheet Details

Part number
STP4NK60ZFP
Manufacturer
INCHANGE
File Size
196.82 KB
Datasheet
STP4NK60ZFP-INCHANGE.pdf
Description
N-Channel MOSFET
